4.5-cubic-meter blue-plate intelligent asphalt spreader
Product configuration table model number: ZKS5040GLQ Type: Fully intelligent heat transfer oil heating Total Dimensions: 5770*1980*2580 Total mass 4495KG Component model Specification Brand description Chassis EQ1045SJ3CDF Dongfeng Automobile asphalt Tank SPT040.34 Self-made 4.5 cubic meter proportional Valve group EFRD-G03-160 Racle Everson Hydraulic Pump CBN-F563 Changyuan Hefei Changyuan Hydraulic 110B Telems Ningbo Telems CPU ST30 Siemens German Siemens PLC S7-200 SMART Siemens German Siemens Control Module SB AQ01 Siemens German Siemens Touch Screen TK6071IP Weilun Taiwan Weilun Rear pipe 3.5 meters /21 nozzles, Hangzhou Nuozheng nozzle assembly, touch screen KWCB300, Nuosheng 300L/min burner G10, Lille 10L/h Italian burner NTS-1200-224CN, Mingwei Electric burner RY25-25-160, Hebei Wu 'an 6.5m³/h hydraulic motor CMPDA-E325-ALPS, Zhongcheng hydraulic Ningbo power take-off 6T100Q-0000, Jiashan Hongwei Valve Pneumatic butterfly valve Main technical parameters table of Suzhou Ruike other night working Lighting lamps ZKS5040GLQ asphalt spreader: Fully intelligent type (heat transfer oil heating vehicle parameters
Keywords：
4.5-cubic-meter,blue-plate,int
Categores：
Intelligent asphalt spreader
Product Enquiries：
+86-17705341945Product description
Product allocation table
Model: ZKS5040GLQ
Type: Fully intelligent heat transfer oil heating
Total dimensions: 5770*1980*2580
Total mass: 4,495 kg
| Component | Model specification | Brand | Explanation |
| Chassis | EQ1045SJ3CDF | Dongfeng Motor | |
| Asphalt tank | SPT040.34 | Self-made | Volume: 4.5 cubic meters |
| Proportional valve assembly | EFRD-G03-160 | Racle | Everson |
| Hydraulic pump | CBN-F563 | 长源 | Hefei Changyuan Hydraulic |
| Hydraulic motor | 110B | Taylorms | Ningbo Telems |
| CPU | ST30 | Siemens | Siemens of Germany |
| PLC | S7-200 SMART | Siemens | Siemens of Germany |
| Control module | SB AQ01 | Siemens | Siemens of Germany |
| Touch screen | TK6071IP | Willen | Taiwan Weilun |
| Rear pipe | 3.5 meters /21 nozzles | Hangzhou Nuozheng | Nozzle assembly |
| Asphalt pump | KWCB300 | Nuosheng | 300L/min |
| Burner | G10 | Riyadh Road | 10L/h，Italy |
| Inverter | NTS-1200-224CN | Mingwei | Mean Well Electric |
| Heat transfer oil pump | RY25-25-160 | Wu 'an, Hebei | 6.5m³/h |
| Hydraulic motor | CMPDA-E325-ALPS | Zhongcheng Hydraulic | Ningbo |
| Power take-off | 6T100Q-0000 | Jiashan Hongwei | |
| Valve | Pneumatic butterfly valve | Suzhou Rick | |
| Others | Night working lighting |
Main Technical Parameters Table of ZKS5040GLQ Asphalt Spreader: Fully Intelligent Type (Heat Transfer Oil Heating)
| Vehicle parameters | Vehicle model | ZKS5040GLQ | ||
| Chassis model | EQ1045SJ3CD F | Vehicle type | Special operation vehicle | |
| Overall dimensions (length × width × height)mm | 5770×1980×2580 | |||
| Maximum gross mass（kg） | 4495 | Preparation quality（kg） | 3750 | |
| Rated loading mass（kg） | 615 | Wheelbase（mm） | 2950 | |
| Tire specification | 6.50R16 | |||
| Engine parameters | Engine model | Q23-132E60 | Rated power （kw） | 97 |
Parameters of special equipment | Power take-off model | 6T100Q-0000 | Model of heat transfer oil pump | RY32-32-16 0 |
| Asphalt pump model | KWCB300 | Displacement of asphalt pump （l/min） | 300 | |
| Capacity of asphalt tank（L） | 4500 | Number of nozzles | 21 | |
| Asphalt spraying width（m） | 3.5 | Nozzle form | Intelligent type | |
| Spraying rate(L/m 2) | 0.3~1.0 | Control system | Fully intelligent | |
| Burner capacity | 100,000 calories | |||
Introduction to Special Features
With a blue license plate and a C license, you can drive without any restrictions when entering the urban area.
2. The engine has 132 horsepower and is highly powerful.
3. The vehicle body is short, with a total length of 5.7 meters and a width of 1.98 meters, making it more flexible for construction in urban alleys, streets and residential areas.
4. The heat transfer oil heats up quickly, and there is no need to clean the asphalt pump when there is a pause in the middle.

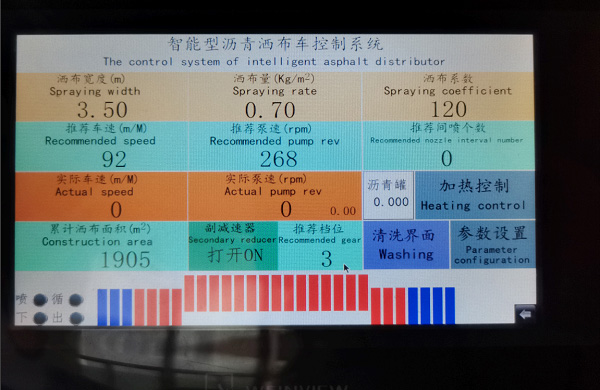

5. Fully intelligent high-end configuration, allowing for precise setting of the amount and width of the spray, and also enabling adjustment of the width while spraying.
6. With the rear spray pipe and hand spray gun configured, it is suitable for both large-scale construction and small-scale repair operations.

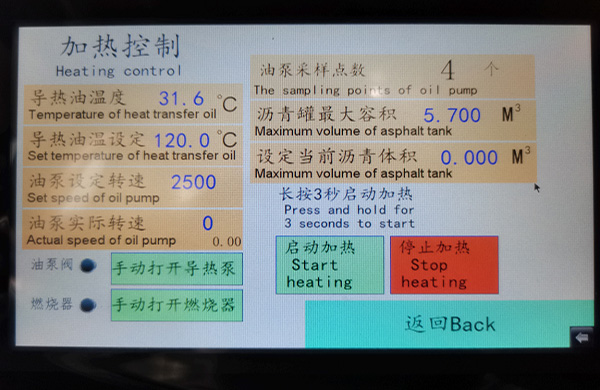

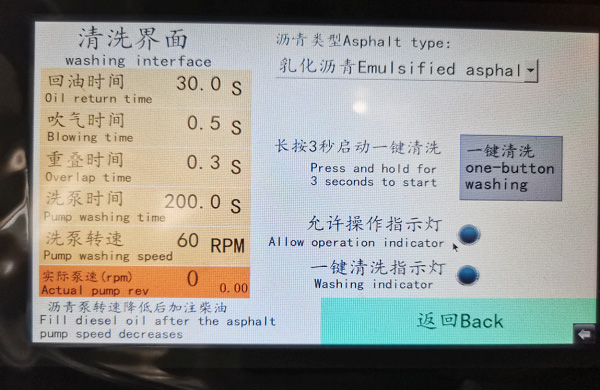

7. Fully automatic one-person cab operation, automatic heating, and one-click oil return and cleaning after operation.
