3-sided intelligent type

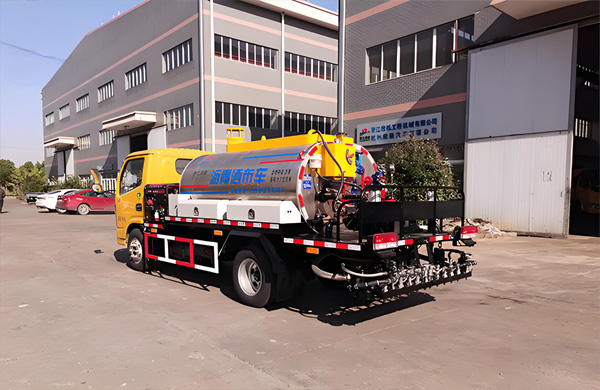

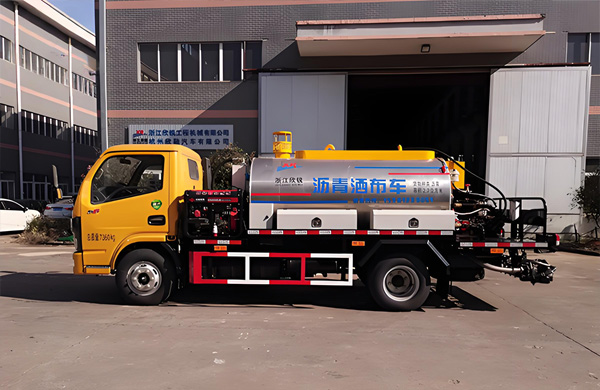

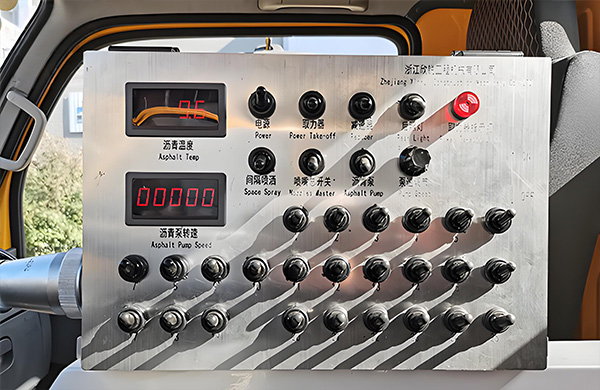

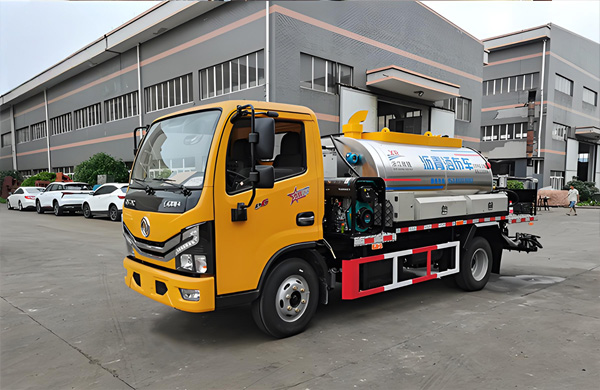

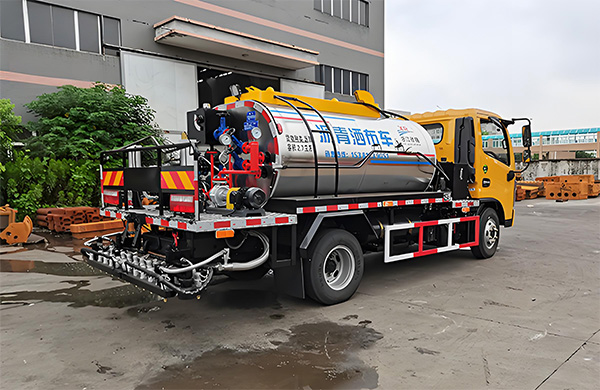

This asphalt spreader has an asphalt tank capacity of 3 cubic meters, a semi-intelligent control system, one nozzle controlled by one, and a maximum spreader width of 4 meters. The spreader volume and width can be manually adjusted as needed. The heating system adopts the heat transfer oil method, which has a fast heating speed. The external asphalt pump and pipelines all have heating and insulation functions. The vehicle is equipped with a fully automatic burner and generator to meet the heating needs at any time. It adopts Dongfeng chassis, with an engine power of 85 kilowatts (115 horsepower) and a short body length (total length 6.1 meters), making it suitable for construction in municipal roads, residential areas and other back streets and alleys.
Keywords：
3-sided,intelligent,type,3-sid
Categores：
Intelligent asphalt spreader
Product Enquiries：
+86-17705341945Product description
Product allocation table
Model: ABC5075GLQ Type: Semi-intelligent heat transfer oil heating
Total dimensions: 6300*2100*2390 Total mass: 7,360 kg
Component | Model specification | Brand | Explanation |
Chassis | EQ1075SJ3CDF | Dongfeng Motor | |
Asphalt tank | SPT080.34 | Self-made | Volume: 3 cubic meters |
Proportional valve assembly | EFRD-G03-160 | Northern Seiko | "Precision Engineering in northern Taiwan |
Hydraulic pump | CBN-F550 | Changyuan | Hefei Changyuan Hydraulic |
Hydraulic motor | 110B | Taylorms | Ningbo Telems |
Rear pipe | 4 meters /25 nozzles | Hangzhou Nuozheng | Nozzle assembly |
Asphalt pump | NYP10/1.0 | Nuosheng | 300L/min |
Generator | CCFD6500E3 | Chang Chai | 5.0KW three-phase diesel |
Burner | 0N | Olympea | "Japan |
Heat transfer oil pump | RY32-32-160 | Wu 'an, Hebei | 6.5m³/h |
Power take-off | 6T100Q-0000 | "Wan Li Yang" | |
Reducer | JS-3-76 | Move forward | Hangzhou Dental Group |
Valve | Butterfly valve | Beifa Technology | Jiangsu Beifa |
Lifting cylinder | SC100*200 | Adek | |
Others | Night working lighting |
Main Technical Parameters Table of ABC5075GLQ Asphalt Spreader
Semi-intelligent type (heat transfer oil heating
Vehicle parameters
| Vehicle model | ABC5075GLQ | ||
Chassis model | EQ1075SJ3CDF | Vehicle type | Special operation vehicle | |
Overall dimensions (length × width × height) mm | 6300×2100×2390 | |||
Maximum gross mass (kg) | 7360 | Curb weight (kg) | 4825 | |
Rated loading capacity (kg) | 2405 | Wheelbase (mm | 3308 | |
Tire specification | 7.00R16 | |||
Engine parameters | Engine model | Q23-115E60 | Rated power (kw | 85 |
Parameters of special equipment | Power take-off model | 6T100Q-0000 | Model of heat transfer oil pump | RY32-32-160 |
Asphalt pump model | NYP10/1.0 | Asphalt pump displacement (l/min) | 300 | |
Capacity of asphalt tank (L | 3000 | Number of nozzles | 25 | |
Asphalt spraying width (m | 4 | Nozzle form | Intelligent type | |
Application rate (L/m ² | 0.3~3 | Control system | Semi-intelligent type | |
Generator power | 5.0kw | Burner capacity | 100,000 calories | |
