6-sided intelligent type

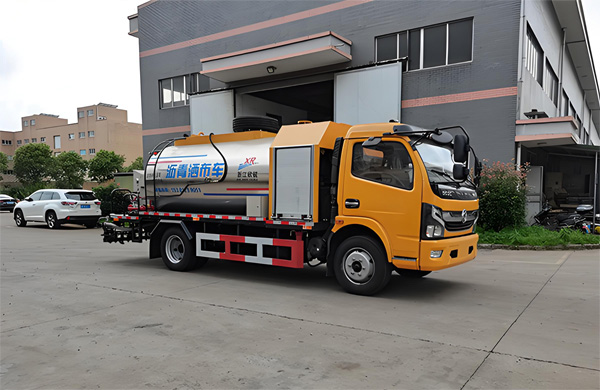

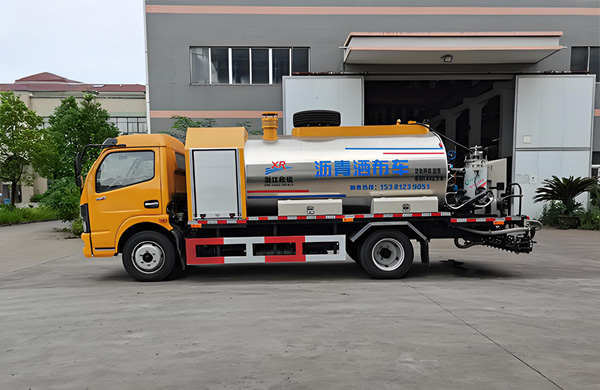

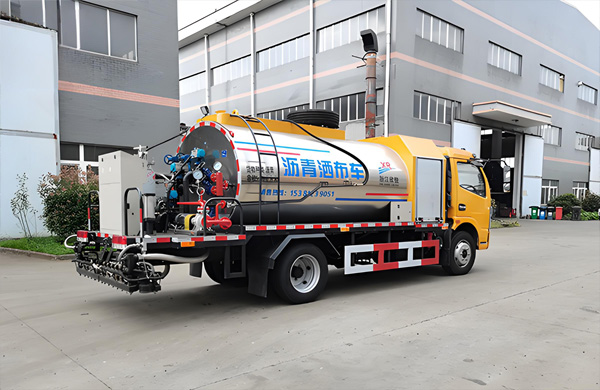

This asphalt spreader has an asphalt tank capacity of 6.3 cubic meters. It is equipped with an intelligent control system that allows for computer setting of the spraying volume and width, precisely controlling the spraying volume. The intelligent nozzle enables the spraying width to be adjusted freely within a range of 4.5 meters. It can be operated by one person from the cab, which is simple, convenient and highly reliable. The heating system adopts the heat transfer oil method, which has a fast heating speed. The external asphalt pump and pipelines all have heating and insulation functions. The vehicle is equipped with a fully automatic burner and generator to meet the heating needs at any time. It adopts Dongfeng chassis and has an engine power of 125 kilowatts (170 horsepower), providing strong performance.
Keywords：
6-sided,intelligent,type,
Categores：
Intelligent asphalt spreader
Product Enquiries：
+86-17705341945Product description
6-cubic-meter product allocation table
Model: ABC5125GLQ Form: Intelligent type with heat transfer oil
Total dimensions: 7250*2300*2750 Total mass: 11,995 kg
Component | Model specification | Brand | Explanation |
Chassis | EQ1125SJ8CDC | Dongfeng Motor | |
Asphalt tank | SZN120.34 | Self-made | Volume: 6.3 cubic meters |
Proportional valve assembly | EFRD-G03-160 | Northern Seiko | "Precision Engineering in northern Taiwan |
Hydraulic pump | CBN-F550 | Changyuan | Hefei Changyuan Hydraulic |
Hydraulic motor | 110B | Taylorms | Ningbo Telems |
CPU | ST30 | Siemens | Siemens of Germany |
PLC | S7-200 SMART | Siemens | Siemens of Germany |
Control module | SB AQ01 | Siemens | Siemens of Germany |
Touch screen | TK6071IP | Willen | Taiwan Weilun |
Asphalt pump | YC500 | Yuchen | Large displacement of internal meshing |
Heat transfer oil pump | RY32-32-160 | Wu 'an, Hebei | 6.5m3/h |
Generator | CCFD6500E3 | Chang Chai | 5.0KWThree-phase diesel |
Burner | 2N | Olympea | "Japanese brand |
Lifting cylinder | SC100×200 | Adek | |
Reducer | JS-4-63 | Move forward | Hangzhou Dental Group |
Valve | Hard-sealed high-temperature butterfly valve | Jiangsu Beifa | |
Heat transfer oil valve | Yongyi |
Main technical Parameters Table of 6-cubic-meter asphalt Spreader
Intelligent type (with heat transfer oil
Vehicle parameters | Vehicle model | ABC5125GLQ | ||
Chassis model | EQ1125SJ8CDC | Vehicle type | Special operation vehicle | |
Overall dimensions (length × width × height)mm | 7250×2300×2750 | |||
Maximum gross mass（kg） | 11995 | Preparation quality（kg） | 6980 | |
Rated loading mass（kg） | 4880 | Wheelbase（mm） | 3800 | |
Tire specification | 245/70R19.5 | |||
Engine parameters | Engine model | YCY30165-60 | Rated power (kw | 121 |
Parameters of special equipment | Control system | Intelligent type | ||
Capacity of asphalt tank（L） | 6300 | |||
Asphalt spraying width（m） | 4.5 | |||
Sprinkling amount(L/m2) | 0.3-3 | |||
Number of nozzles | 29 | |||
Displacement of asphalt pump（l/min） | 500 | |||
Displacement of heat transfer oil pump（L/min） | 60 | |||
Burner capacity | 200,000 calories | |||
Product Introduction
This asphalt spreader has an asphalt tank capacity of 6.3 cubic meters. It is equipped with an intelligent control system that allows for computer setting of the spraying volume and width, precisely controlling the spraying volume. The intelligent nozzle enables the spraying width to be adjusted freely within a range of 4.5 meters. It can be operated by one person from the cab, which is simple, convenient and highly reliable. The heating system adopts the heat transfer oil method, which has a fast heating speed. The external asphalt pump and pipelines all have heating and insulation functions. The vehicle is equipped with a fully automatic burner and generator to meet the heating needs at any time. It adopts Dongfeng chassis and has an engine power of 125 kilowatts (170 horsepower), providing strong performance.
Product features

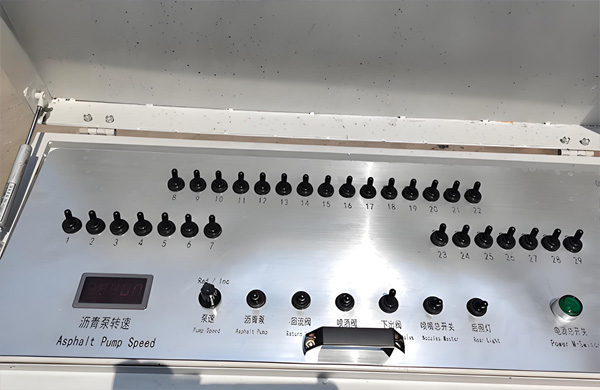

1. Intelligent control system, with touch screen setting for sprinkling parameters, achieving precise control of the sprinkling amount.
2. One-click switching between automatic and manual modes to meet different operation requirements.
3. Hydraulic drive, safe, reliable and noise-free.
4. Hydraulic oil cooling system, solving the problem of oil temperature rise during long-term continuous operation.
5. The heat transfer oil heating system features rapid temperature rise, excellent heat preservation effect, and can also remove demulsified asphalt at the bottom of the tank.
6. On-board diesel generator provides power guarantee, and heating does not require starting the vehicle.
7. After the construction is completed, the one-click oil return and cleaning functions are convenient and fast.
Vehicle model | ABC5125GLQ |
Chassis model | EQ1125SJ8CDC |
Engine model/power | YCY30165-60 Yuchai 165 horsepower |
The volume of the asphalt tank is m3 | 6.3 |
Spreading width m | 4.5 |
The asphalt spreading amount is kg/m ² | 0.3-2.5 |
Heating method | Burner + heat transfer oil |
Burner capacity | 200,000 calories |
