Product features
1. Basic model, ordinary type control box, simple operation, easy to master.

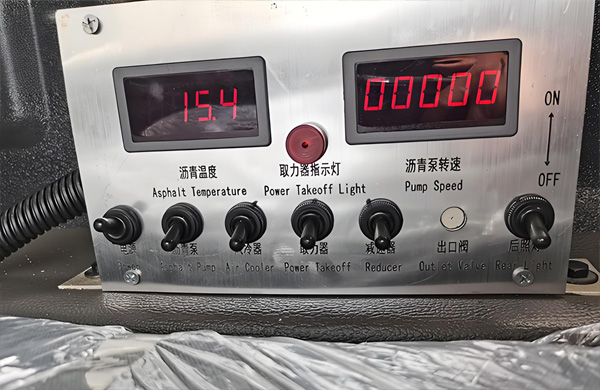

2. The asphalt temperature and the speed of the asphalt pump are digitally displayed, making it clear at a glance.
3. Equipped with a reducer, the vehicle speed slows down, making it suitable for manual spraying.
4. High-torque hydraulic motor, solving the problem of difficult starting.
5. A unique gas path cleaning system solves the problem of residual asphalt clogging after construction.
6. Fully automatic burner, automatic ignition, automatic flameout in case of fault protection, with good reliability.
7. On-board diesel generator provides power guarantee, and heating does not require starting the vehicle.
Keywords：
Regular,export,parties,
Categores：
Ordinary type asphalt spreader
Product Enquiries：
+86-17705341945Product description
Product allocation table
Model number：EQ5070GLQ Form：Ordinary type
Total dimensions：6200*2140*2340 Total mass：7360KG
Component | Model specification | Brand | Explanation |
Chassis | EQ1070SJ7BDF | Dongfeng Motor | |
Asphalt tank | SPT080.34 | Self-made | Volume: 4 cubic meters |
Hydraulic system | Racle | Everson | Taiwan |
Air cooler | AH1470 | Shanghai Jianyi | |
Control system | Ordinary type | Self-made | |
Rear pipe | 4.5 meters /28 nozzles | Hangzhou Nuozheng | Common type nozzle |
Asphalt pump | KCB300 | Nuosheng | 300L/min |

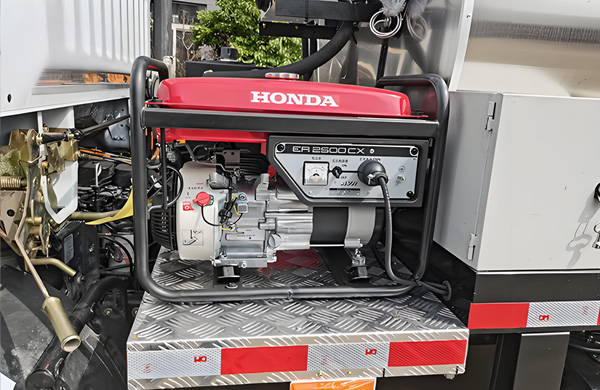

Generator | ER2500CX | Honda | 2.0kw，"Japan |
Burner | G10 | Riyadh Road | 10L/h，Italy |
取力器 | SDQ24/63 | Pawa | |
减速器 | JS-3-76 | Move forward | Hangzhou Dental Group |
Valve | High-temperature butterfly valve | Rick | Jiangsu |
Lifting cylinder | SC100*200 | Shengda Pneumatic | Ningbo Shengda |
Others | Night working lighting |
Main Technical Parameters Table of EQ5070GLQ Asphalt Spreader
Ordinary type
Vehicle parameters
| Vehicle model | EQ5070GLQ | ||
Chassis model | EQ1070SJ7BDF | Vehicle type | Special operation vehicle | |
Overall dimensions (length × width × height)mm | 6200×2140×2340 | |||
Maximum gross mass（kg） | 7360 | Preparation quality（kg） | 4505 | |
Rated loading mass（kg） | 2660 | Wheelbase（mm） | 3308 | |
Tire specification | 7.50R16 | |||
Engine parameters | Engine model | YC4FA115-50 | Rated power（kw） | 85 |
Parameters of special equipment | Power take-off model | 6T100Q-0000 | ||
