9-sided intelligent type

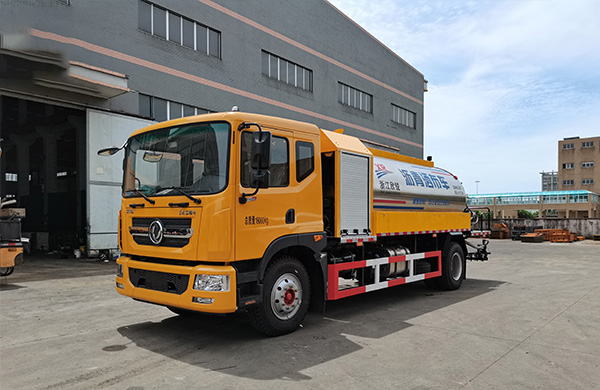

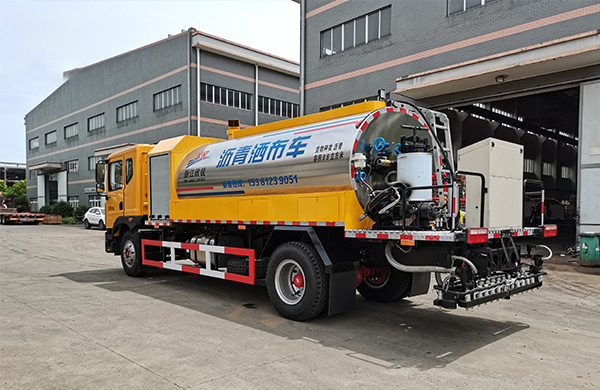

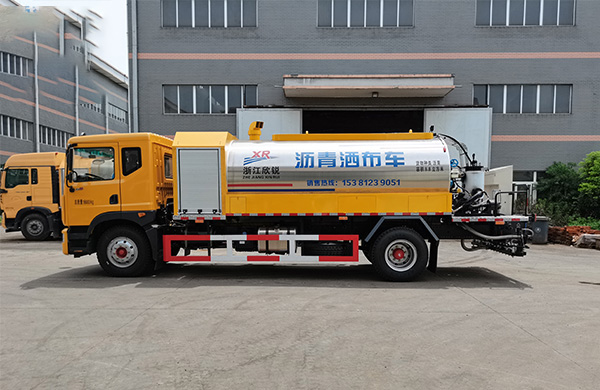

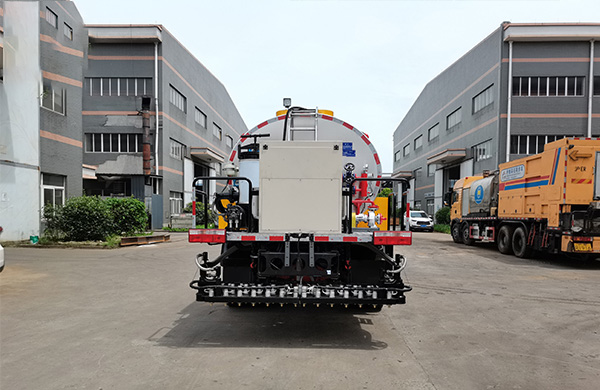

This vehicle is equipped with a Dongfeng D9 heavy-duty chassis, 9.00R20 steel wire tires, a wide-body double-layer frame, and has a strong weighing capacity. With a wheelbase of 3,950 meters and an overall length of 7.4 meters, it is convenient and flexible. The fully intelligent control system is equipped with a CPU and control module of Siemens brand and a touch screen of Taiwan Weilun. It can precisely control the amount of asphalt sprayed per square meter, freely switch between automatic control and manual control, and the spraying width can be controlled at will. The heat transfer oil system is configured to facilitate the removal of demulsified asphalt at the bottom of the asphalt tank, preventing people from climbing into the tank. When spraying hot asphalt, the heat loss in the pipeline is reduced through the circulation of heat transfer oil, ensuring a good spraying effect. Before each construction, by circulating the heat transfer oil, even if the asphalt pump is not cleaned at the end of the previous construction, the stuck asphalt pump can be dissolved. After the construction is completed, the oil can be returned to the tank with one click and the asphalt pump and spraying arm can be cleaned with one click to prepare for the next use.
Keywords：
9-sided,intelligent,type,
Categores：
Intelligent asphalt spreader
Product Enquiries：
+86-17705341945Product description
Product allocation table
Model number：ABC5185GLQ Form: Intelligent type with heat transfer oil
Component | Model specification | Brand | Explanation |
Chassis | EQ1185LJ9CDE | Dongfeng Motor | Dongfeng Motor |
Asphalt tank | SZN180.34 | Self-made | Volume: 9 cubic meters |
Proportional valve assembly | EFRD-G03-160 | Northern Seiko | "Precision Engineering in northern Taiwan |
Hydraulic pump | CBN-F550 | Changyuan | Hefei Changyuan Hydraulic |
Hydraulic motor | 110B | Taylorms | Ningbo Telems |
CPU | ST30 | Siemens | Siemens of Germany |
PLC | S7-200 SMART | Siemens | Siemens of Germany |
Control module | SB AQ01 | Siemens | Siemens of Germany |
Touch screen | TK6071IP | Weilun | Taiwan Weilun |
Asphalt pump | YC500 | Hangzhou Yuchen | Internal meshing, low speed and large displacement |
Heat transfer oil pump | RY32-32-160 | Hebei Zhaohong | 6.5m3/h |
Generator | CCFD6500E3 | Chang Chai | 5.0KW three-phase diesel |
Burner | 2N | Olympea | 20L/h，"Japan |
Reducer | JS-4-63 | Move forward | Hangzhou Dental Group |
Lifting cylinder | SC100×200 | Shengda Pneumatic | |
Valve | Hard-sealed high-temperature butterfly valve | Jiangsu Beifa | |
Heat transfer oil valve | Yongyi |
Total dimensions: 9100*2460*3150 Total mass: 18,000 kg
Main Technical Parameter Table of ABC5185GLQ Intelligent Asphalt Spreader
Vehicle parameters | Vehicle model | ABC5185GLQ | ||
Chassis model | EQ1185LJ9CDE | Vehicle type | Special operation vehicle | |
Overall dimensions (length × width × height)mm | 9100×2460×3150 | |||
Maximum gross mass（kg） | 18000 | Preparation quality（kg） | 10250 | |
Rated loading mass（kg） | 7620 | Wheelbase（mm） | 5300 | |
Engine parameters | Engine model | YCS04200-68（200Horsepower） | ||
Rated power（kw） | 147 | Displacement（ml） | 4156 | |
| Control system | Fully intelligent | ||
Capacity of asphalt tank（L） | 9000 | |||
Asphalt spraying width（m） | 4.5 | |||
Sprinkling amount(L/m2) | 0.3~3 | |||
Number of nozzles | 29 | |||
Displacement of asphalt pump（l/min） | 500 | |||
Displacement of heat transfer oil pump（L/min） | 108 | |||
Burner capacity | 200,000 calories | |||

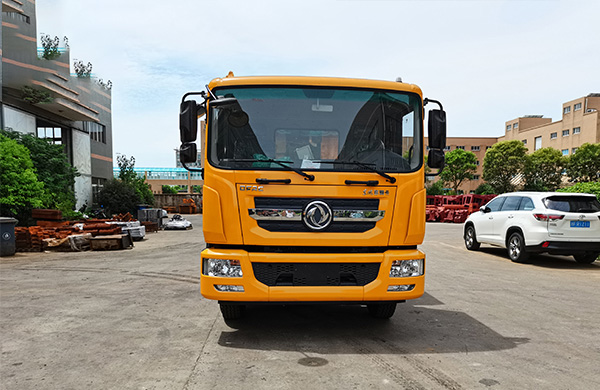

It is equipped with a Dongfeng D9 chassis, a 5.3-meter wheelbase, a Yuchai 200-horsepower engine, a FAST transmission, original air conditioning, power Windows, ABS, and 10.00R20 steel wire tires.
Product features
1. Dongfeng D9 chassis, Yuchai engine with 200 horsepower, high power, good handling and comfortable driving.
2. The intelligent control system, PLC controller, and program have been improved and upgraded multiple times to achieve precise control of the scattering quantity.
3. Touch screen control enables easy human-machine interaction.
4. One-click switching between automatic and manual modes to meet different operation requirements.
5. Hydraulic drive, safe, reliable and noise-free.
6. The high-torque hydraulic motor has solved the problem of difficult starting.
7. Hydraulic oil cooling system, solving the problem of oil temperature rise during long-term construction.
8. Newly designed intelligent nozzles, individually controllable, with no dripping or leakage.
9. Automatic burner with low failure rate.
10. On-board three-phase motor to ensure power supply.
11. The heat transfer oil is used for heating and warming, truly enabling the spraying of hot asphalt. The asphalt pipelines and pumps do not need to be cleaned, and at the same time, the problem of asphalt heating at the bottom of the tank is solved.
Vehicle model | ABC5185GLQ |
Chassis model | EQ1185LJ9CDE |
Engine model/power | YCS04200-68 Yuchai 200 horsepower |
The volume of the asphalt tank is m3 | 9 |
Spreading width m | 4.5 |
The amount of asphalt spreadkg/m2 | 0.3-2.5 |
Burner + heat transfer oil | |
Burner capacity | 200,000 calories |
